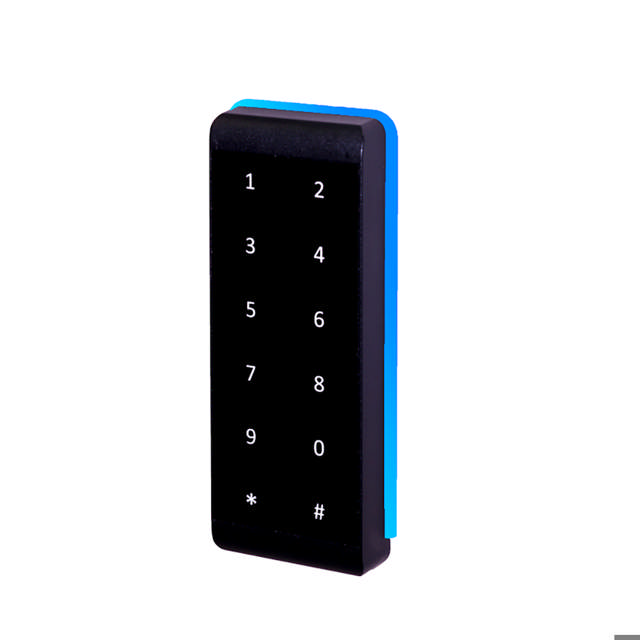

readID™ Wall S - Mifare Desfire - PIN - Black - 3m. kabel
SE 1360 DKC
Mifare DESFire kortlæser med EMV funktionalitet
-
- MIFARE Classic® (UID / Sector)
- MIFARE Ultralight® (UID)
- MIFARE® DESFire EV1/EV2 (UID / Application-AES)
- EMV® Virtual card number
- Predefined formats or Custom Configuration
- PIN Pad with back light
- Tamper monitoring
- Day light sensor
- Interface:
- Wiegand
- Clock / Data
- RS485 / OSDP
- Termination: Fixed mount cable 3 meter
Technical data
- Dimensions: 121 x 50 x 16 mm (L x W x H)
- Color: Black (RAL 9005)
- Connection: 10 way detachable connector or Fix mount screened cable (3m)
- Supply Voltage: 5 – 30 VDC / 50 mA
- Temperatur Range: -30 C -> +70 C
- IP Rating IP54 or IP65 with seal between reader and wall
- Commodity code: 8471.60.90.30
- Country of Origin: DK
- ECCN code (US): N
- Export list number (EU): N
- Certification: CE & UKCA
- Buzzer
- Ja
- Display
- Nej
- Farve
- Sort
- IP klasse
- 54
- Kabelconnector
- Pigtail
- Kabellængde (cm)
- 300
- Kommunikations-protokol
- Wiegand OSDP RS485
- Læseteknologi
- Mifare Desfire EMV® Virtual card number
- Strømkilde
- 9-30V DC
- Tastatur
- 2x6 Touch
- Touchscreen
- Nej
| Navn | Download | Fil type | |
|---|---|---|---|
|
SE-1360-Wall-S-datasheet.pdf | 137 KB |
